28 Tudor - cut, chop, slam, bag, ect...

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • 28 Tudor - cut, chop, slam, bag, ect...

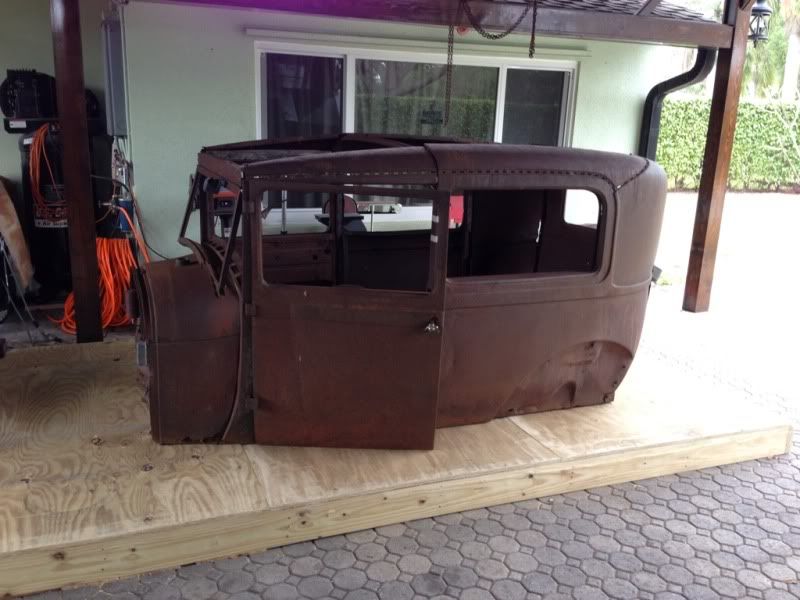

    Here we go again boys and girls. Two 28-29 Tudors were delivered to my home this morning and now its go time. One is for a project I am working on with an associate of mine (details to come) and the second is for a paying customer. As per the customer I have to have this one completed top to bottom in six months. I will keep the updates coming as much as possible. It is going to have a 305 in it, back to a TH400 with a 3500 stall converter, back to a Ford 9' rear end with posi track.




  • #2
    You have me running in circles here.....

    Comment


    • #3
      Hey should i start saying, ARE YOU DONE YET, ARE YOU DONE YET, ARE YOU DONE YET, lol !

      Comment


      • #4
        So I went to bike week last weekend to watch Supercross live in Daytona as we do every year and I got sick :( needless to say this week will not be a very productive one on the build side, but I did meet with my partner today to draw up the frame and get that into production. I should have that going together next week. In the mean time I will be spending some time on getting the body right and maybe start the chop.

        Comment


        • #5
          Sorry for the lack of updates. We got the frame out of production and all put together. The rails are 2x3 1/8" steal and are all laser cut with the Z end fittings being milled for a perfect fit and finish. Front Z is 8" and rear is 16". This frame went together like butter and it has only taken me 7.5 hours up to this point to do and that's with me stopping and taking pics and making notes on how to build it along the way. I think it should take about 6 hours to assemble. Hardknox will be mass producing these frames moving forward. We would like to offer these to Killbillet members for a special Killbillet price of $800 plus shipping. You can message me at: hardknoxkustoms@gmail.com and mention: Killbillet and the Fitz Frame. We will be cutting these to order so please allow a week for production and to be shipped. I havent shipped one of these yet, but I think it can be done for around $150 or so.

          Here's a look at the Z mill fit and finish

          Here's the finished product





          And here's a shot of my breakfast this morning - Come on!!!

          Comment


          • #6
            Looking good, can't wait to see what you got planned for these.

            Comment


            • #7
              Goodness is this going to be a duel build tread!

              Comment


              • #8
                Originally posted by rustbuilder View Post
                Goodness is this going to be a duel build tread!
                No, just one build. When we start the other one we will start a new thread.

                Comment


                • #9
                  update: We got the engine and trans in place..


                  Comment


                  • #10
                    Update: we also started the rear end placement. It's all tacked in place. Picking up shocks today to get them tacked in than ripping it all down to do final welds. Than it's on to the front end and we will have a roller!!!



                    Comment


                    • #11
                      Lookin good

                      lookin good. I like the frame design.

                      Comment


                      • #12
                        frame

                        that is one sexy frame!!1 I love the way the motor tucks down in there, VERY NICE!!!

                        Comment


                        • #13
                          Originally posted by CRUSTY ONE View Post
                          lookin good. I like the frame design.
                          Thank you!

                          Comment


                          • #14
                            Originally posted by ChristCrusader13 View Post
                            that is one sexy frame!!1 I love the way the motor tucks down in there, VERY NICE!!!
                            Thanks man!

                            Comment


                            • #15
                              So I got the cross member tacked in today. We are going with a Mustang II front end on bags. This is my first one installing. Question: I tacked it in so it sat on the ground with the frame, does anyone know if that is ok or if it should be raised up a bit higher than the frame. I called Paul Horton of Welder Series and we both agreed that it should sit on the ground with the frame or maybe a 1/2' higher. Has anyone tried this set up yet and can you offer any suggestions or confirm that we are on the right path? At this point I am going to bolt the A arms on and get the whole thing bolted up and give the bags and arms a few up and downs to see how it all sits.
